Timing Controllers
Timing Controllers
The timing controller (“TCON”) receives image data and converts the format for the source drivers’ input and also generates controlling signals for gate and source drivers.
Timing Controller for LCD-TV
Features
- Provide HD/FHD/UHD/8K4K TV TCON
- Support over-driving, line-od, DLCS, local-dimming B/L control functions, and de-mura function for Image enhancement
| Part No. | Resolution | Input/Output Interface | Feature | Frequency | Voltage | Package |
|---|---|---|---|---|---|---|
| HX8872 | HD | LVDS / MLVDS | Over-drive 1366*768, CABC, 6+Hi-FRC/8bit | 30-115MHz | 3.3V | QFN48 |
| HX8894 | FHD | LVDS / MLVDS | Over-drive 1920*1080, CABC, 8bit/8bit+Hi-FRC | 30-115MHz | 3.3V | QFN-68 / TQFP-64 |
| HX8890 | UHD | V-by-one / MLVDS or Point to Point | Over-drive 3840*2160, CABC, 8bit/8bit+Hi-FRC/10bit | 3.75Gbps/lane | 3.3V, 1.8V, 1.2V | LQFP-128 / QFN-88 / QFN-68 |
| HX8898 | 8K4K | V-by-one / Point to Point | Over-drive 7680*4320, CABC, 8bit/8bit+Hi-FRC/10bit | 3.75Gbps/lane | 3.3V, 1.8V, 1.5V, 1.1V | HS BGA 896 |
Timing Controller for Monitor/Notebook/Tablet
Features
- Provide HD/FHD/QHD/UHD for Monitor/Notebook/Tablet/Automotive TCON
- Provide input I/F LVDS, eDP and MIPI selections & output I/F Mini-LVDS and Point-to-Point selections
- Low Power Technology for NB & Tablet application
- Support amorphous silicon, oxide, LTPS type LCD panel
- AEC-Q100 verified -40~105°C degree temperature supported for automotive TCON
| Part No. | Application | Resolution | Input/Output Interface | Frequency/Data Rate | Features | Voltage | Package |
|---|---|---|---|---|---|---|---|
| HX8861 | Monitor/Automotive | HD/FHD | LVDS/MLVDS | 30-115MHz | GOA Timing, Pattern Detection | 1.1V, 2.5V/3.3V | TQFP64 |
| HX8876 | NB | HD/FHD | 2 Lane eDP1.2 / MLVDS or Point-to-Point | 1.62/2.7Gbps | GOA Timing, CABC, Color Engine, Mobile noise immune | 1.2/2.5V | QFN-46/60 |
| HX8879 | NB | HD/FHD | 2 Lane eDP1.4 / MLVDS or Point-to-Point | 1.62/2.7Gbps | GOA Timing, PSR, IGZO/LTPS panel, CABC, Color Engine | 1.2V/2.5V | QFN-60 |
| HX8880 | Automotive | 3840×1080, 6880×1080 | 4 Lane LVDS or 4 Lane eDP1.2/ Point-to-Point | 1.62/2.7/5.4Gbps | ACE-Q100, -40~105°C, Local Dimming | 1.2/1.8/2.5V | LQFP128, LQFP176 |
| HX8886 | Monitor | QHD | LVDS/ MLVDS | 35-110MHz | GOA Timing, Pattern detection, Overdrive, De-mura | 1.1V, 1.8V, 2.5V/3.3V | LQFP128 |
| HX8887 | Monitor | UHD | 4/8 lane eDP1.2 / Point to point | 5.4/8.1Gbps | GOA Timing, Pattern detection, Overdrive, De-mura | 1.1/1.5/1.8V | LQFP128, LQFP216, LFBGA289 |
| HX8896 | Tablet | FHD | 4 lane MIPI/ MLVDS or Point to Point | 1.0Gbps | GOA Timing | 1.2/2.5V | QFN46, QFN60 |

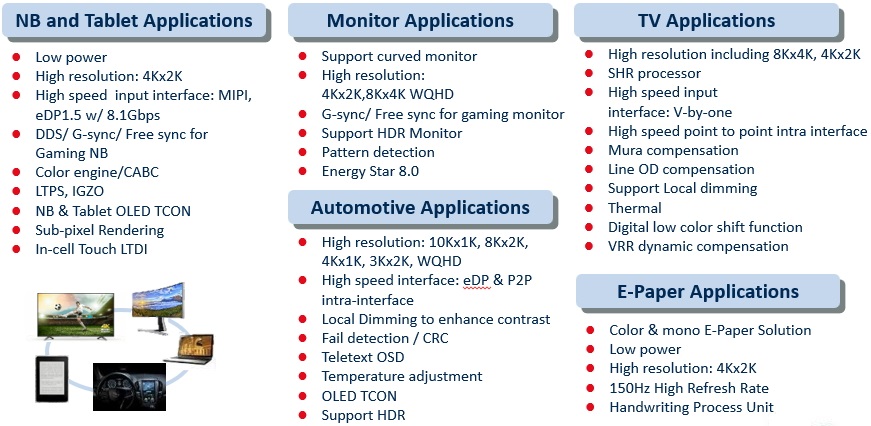

Himax have a complete product line and leading technology on Tcon panel for Automotive, Tablet, NB, Monitor, TV, public or industrial displays. We also provide high resolution, high frame rate, low power consumption, high speed transmitter interface technology that help improve image quality. In addition, we are dedicated to new display technology for OLED and uLED, which continue to provide customers with innovative and forward-looking solutions.
